Performance
Rated speed

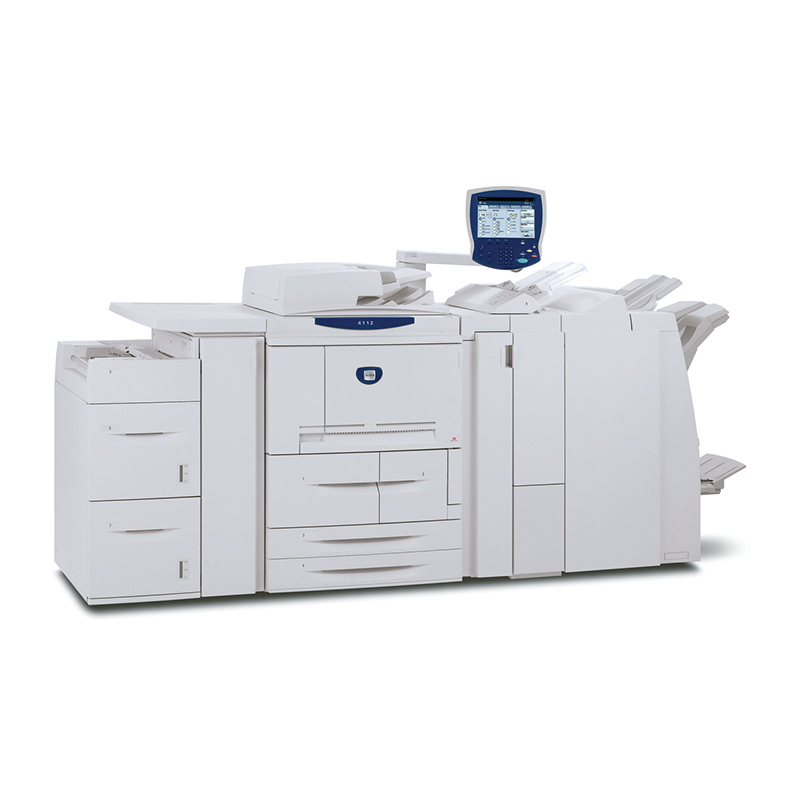

4112 Copier/Printer: 110 ppm
4127 Copier/Printer: 125 ppm
4127 Copier/Printer: 125 ppm
Resolution
Print: 2400 x 2400 dpi
RIP: 1200 x 1200 dpi
Scan: 600 x 600 dpi
RIP: 1200 x 1200 dpi
Scan: 600 x 600 dpi
Line Screens
106 lpi (default) or 150 lpi (high quality mode)
Recommended average monthly volume
70,000 – 700,000 pages per month
Duty cycle
2,000,000 pages per month
Scan speed
100 ipm black and white scanning (one- or two sided); optional Color Scan Enablement kit available.
First-copy-out time
3.5 sec
Capabilities
Standard Capabilities
Printing, copying, scanning
Printed Sides
Duplex
MICR
No
Technology
Print Engine
Xerographic
Paper Handling
Paper sources
6 standard
Standard paper capacity
4,250 sheets
Maximum paper capacity with options
8,250 sheets
Media Dimensions – Minimum
4 x 6 inches
Media Dimensions – Maximum
13 x 19.2 inches
Media Weight – Minimum
16 lb bond
Media Weight – Maximum
140 lb index
Media Types
Carbonless, DocuCards, Document Folders, synthetics, tabs, labels, specialty media, coated stock
Refer to customer expectations setting document for supported media and capabilities for coated stocks
Refer to customer expectations setting document for supported media and capabilities for coated stocks
Input
Tray 1
1,100 sheets (8.5″ x 11″/A4)
Tray 2
1,600 sheets (8.5″ x 11″/A4)
Tray 3
550 sheets (up to 13.0″ x 19.2″/SRA3)
Tray 4
550 sheets (up to 13.0″ x 19.2″/SRA3)
Tray 5
250 sheets (up to 13.0″ x 19.2″/SRA3)
Standard Duplex Automatic Document Feeder
250 sheets
Optional High Capacity Feeder
- High Capacity feeder: Two trays with 2,000 sheets each (4,000 sheets total), 8.5 x 11″ (A4)
- Oversize High Capacity Feeder: Single tray with 2,000 sheets, up to 13″ x 19.2″ (330mm x 488mm)
- Dual Tray Oversize High Capacity Feeder: Two trays with 2,000 sheets each (4,000 sheets total), 13″ x 19.2″ (330mm x 488mm)
Other Input Devices
Standard Inserter: 200 sheets
Finishing
Finisher
Standard Finisher:
- 3,000 sheet stacker capacity
- 500 sheet top tray capacity
- Variable-length stapler – Staples up to 100 sheets, multi-position single or dual
- 2 and 3 hole punch (North America), 2 and 4 hole punch (Europe and South America), 4 hole Swedish punch
- Built-in bi-directional de-curler
Booklet Making
Booklet Maker Finisher: All the features of the Standard Finisher plus:
- Creates saddle-stitched booklets of up to 25 sheets, for a total of 100 imposed pages
- Creates booklets from 8.5″ x 11″/A4, or 8.5 x 14″, 11″ x 17″/A3, or 12″ x 18″/SRA3
- Allows integration of color covers
SquareFold Trimmer
Xerox SquareFold™ Trimmer Module:
- Standalone module attaches to Booklet Maker Finisher
- Trim capacity 5-20 sheets (24 lb.) or 5-25 sheets (20 lb.)
- Accurately trims for sharp, clear results
- Allows the user to control amount of trim and thickness (2 – 20 mm, adjustable in 0.1 mm increments)
- Creates booklets that can be opened flat without damaging the spine
Hole Punch
GBC® AdvancedPunch™:
- Several customer replaceable Die Sets available
- Supports 8.5 x 11 (A4) Long Edge Feed, 20 lb. Bond – 80 lb. Cover
Stacker
High Capacity Stacker:
- 5,000-sheet offsetting output stack tray (7.2″ x 8.3″ up to 13″ x 19.2″ (B5 LEF to SRA3)
- 500-sheet top tray capacity
- Includes one rollaway cart – additional carts available
Folder
Optional Folder:
- C-fold and Z-fold of 8.5″ x 11″/A4
- Bi-fold 8.5 x 11″/A4, 8.5 x 14″, or 11 x 17″/A3
- Engineering Z-fold folds 11″ x 17″/A3 for insertion into 8.5 x 11″/A4 sets
- Print on inside or outside of folded paper
Print Controllers
Digital Front Ends
Integrated Copy/Print Server
- Hardware Specifications
- 40 GB Hard Disk Drive, 1 GB RAM
- 10.4” color, touch screen fl at-panel display
- Ethernet interface (10 MBTX/sec and 100 MBTX/sec)
- Client Environments Supported
- Windows® 2000/XP and Vista
- Macintosh® OS 10.3, 10.4.8
- IntelMac 10.4.4 – 10.4.8, 10.5
- PDLs and Data Formats
- Adobe® PostScript® Level 3
- PCL 5e and 6
- TIFF
- HPGL, HPGL2
- Connectivity
Native network environments- TCP/IP, SNMP, SMB, Novell® IPX, AppleTalk®, IPP
- Copy and Save to mailbox/folders
- Preview documents from mailbox before printing
- Mailbox backup and restore
- iPV6 compliant
Optional Xerox FreeFlow™ Print Server
- Hardware Specifi cations
- SUN® platform
- 2 GB memory
- 160 GB, SATA Hard Drive (minimum)
- DVD Writer/CD Writer
- Color flat-panel monitor, keyboard and mouse
- Client Environments Supported
- Windows® 2000 SP4/XP SP2, Server 2003, Vista and Server 2008: 32-bit and 64-bit
- Macintosh® OSX 10.3.9 or later
- Options
- FreeFlow Print Server Stand
- FreeFlow VI Interpreter (VIPP®)
- Imposition License (standard)
- Productivity Pack – delivers multiple queues, stock library and more
- LCDS and IPDS enablement
- Online CUP Kit (Channel-to-Universal PCI for online channel connectivity)
- Removable Hard Disk Drive
- Disk Overwrite
- Connectivity
Native network environments- TCP/IP, SNMP, Novell® IPX, AppleTalk®, IPP
- iPV6 compliant
Optional Xerox EX Print Server, powered by Fiery®
- Hardware Specifications
- 2.8 GHZ Celeron® D CPU
- 1 GB Memory
- Two 80 GB SATA Hard Drives
- DVD/CD-RW drive
- Client Environments Supported
- Windows® 2000 SP4/XP SP2, Server 2003, Vista: 32-bit and 64-bit
- Macintosh® OSX 10.3 or later
- Sun™/Linux/SGI UNIX Printing via LPD
- Fiery Optional Hardware/Software
- Fiery Compose, Fiery Impose Package
- FACI Kit (flat-panel monitor, keyboard, mouse)
- FACI Furniture
- External Hard Disk Drive Security Kit
- FreeFlow VI Interpreter (formerly VIPP)
- Connectivity
Native network environments- TCP/IP, AppleTalk®, SNMP, SMB, IPP, NDPS, NetWare, Novell® Certified, Bonjour Support
- Energy Star® certified
- iPV6 compliant
